Varactor tuned oscillators
  • OT-GV          : varactor tuned


Frequency (GHz)
9-11
14-18
18-26
26-40
40-60
50-60
60-75
75-95
95-105
Power  (mW)
100
100
100
100
70
60
50
50
30

Tuning Bandwidth (%)
2.0
2.0
2.0
2.0
2.5
2.5
3.0
3.0
3.0












Maximum power & bandwidth not available at same time
Higher power & bandwidth options are available on request


GN
GV
wide
low

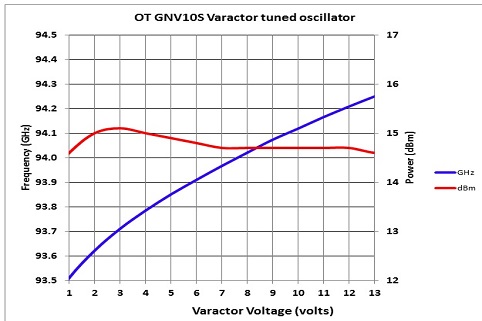

GNVSgraph

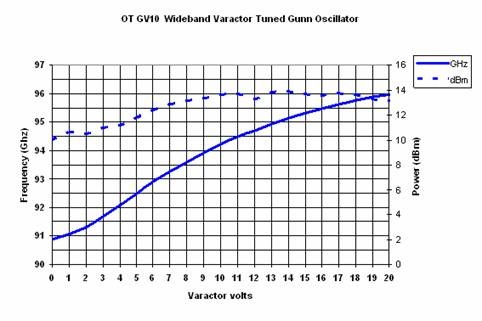

GNV10graph

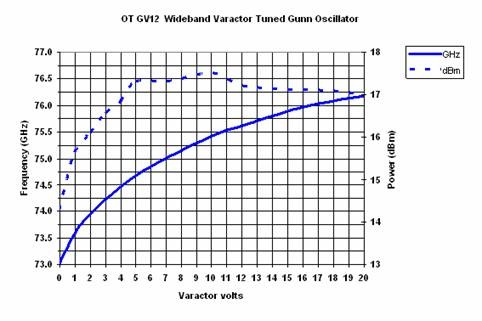

GNV12graph

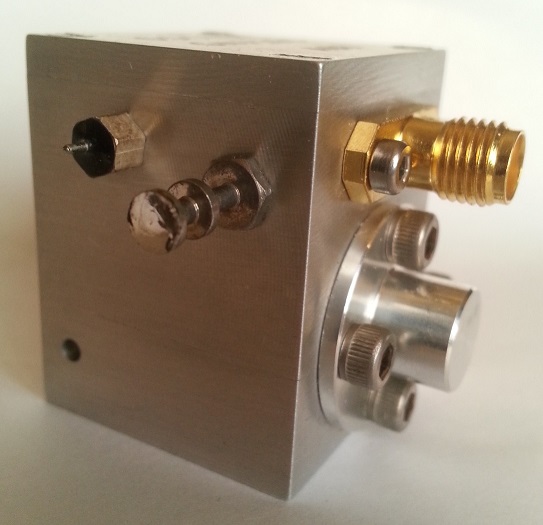

GNVhardware


1 specify center frequency
Performance subject to change without notice
